Acoustica revolutionised the way we manage, control and cope with sound. With over 30 years of expertise providing tailored acoustic solutions across Australia from their Sydney manufacturing and design facility, Acoustica is the industry leader in noise control innovation.
Product range
The AngelStep® floor acoustic underlay product range is designed for the treatment of Impact and airborne noise transfer.
AngelStep® construction combines a highly effective support and cushion. It provides maximum performance for minimum thickness, uniquely combining impact, vibration damping and sound absorber.

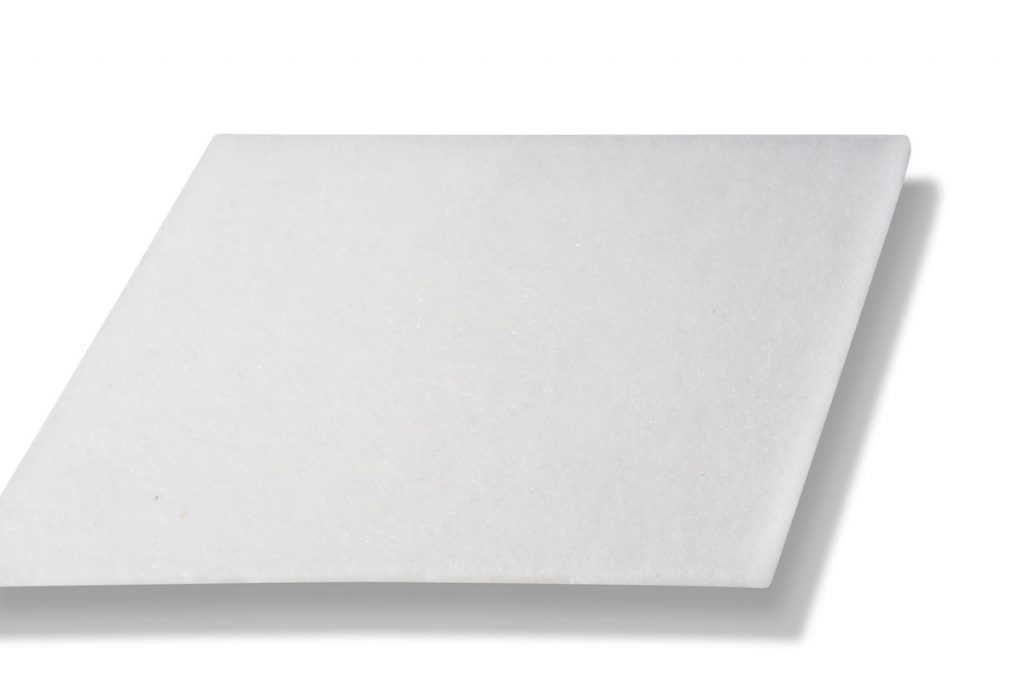

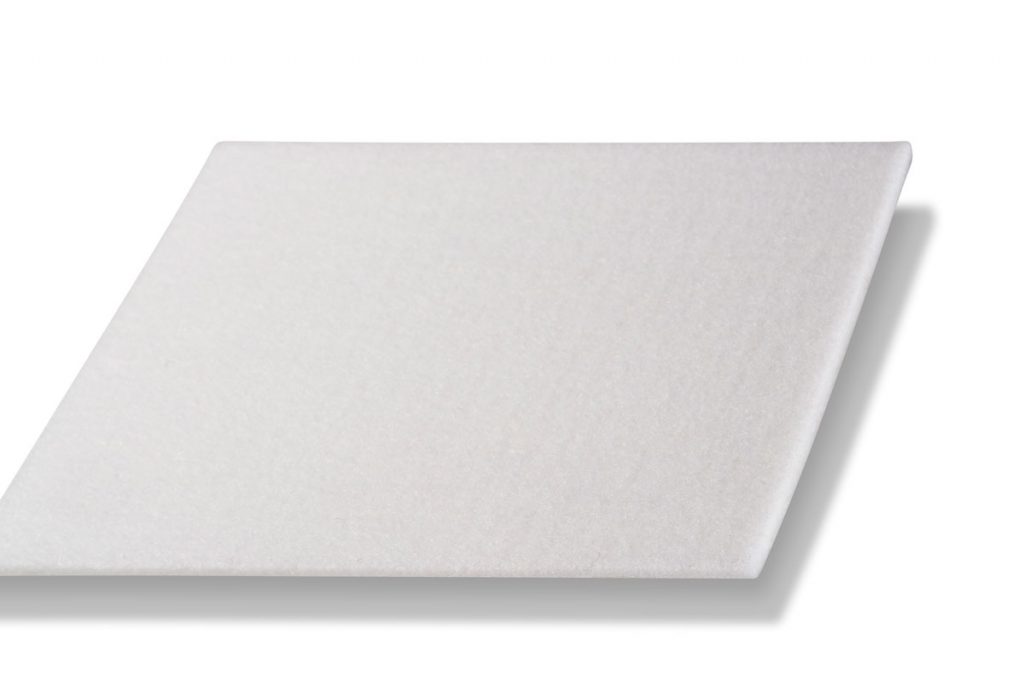

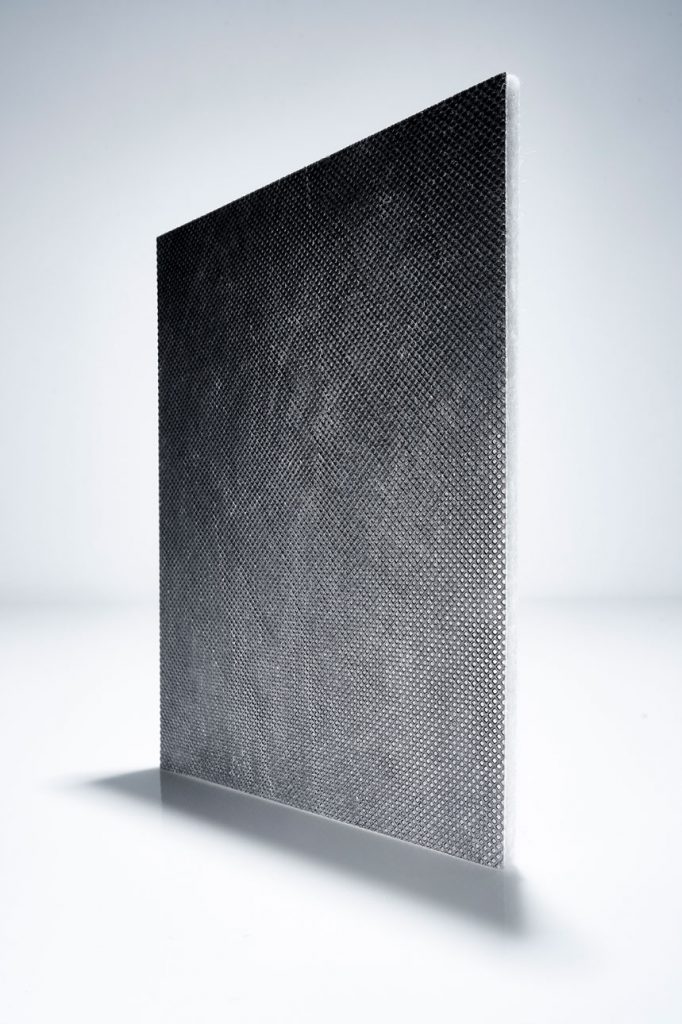

AngelStep 484P
AngelStep 484P acoustic underlay is specifically designed for properties which use a timber substrate, offering exceptional reduction of both airborne and impact noise.
Application
Residential apartments
Unit blocks
Commercial offices
Schools
Shopping malls
Technical data
- Standard sheet size 1150 x 1150 x 10mm
- Capable of achieving the highest 6-star rating dependent on installation
- Zero VOC’s, zero emissions and non-toxic
- 10 year warranty (subject to correct installation and use)
- BCA compliant (separating floors between adjoining dwellings)
- Water and chemical resistant
- Australian designed and manufactured
- Compressive strength at 10% deformation (EN 826) = 88.7 kPa
- Dynamic stiffness (ISO 9052-1) = 180.92 MN/m³
- Compressibility (EN 12431) = 0.2mm @ 50 kPa
Features & Benefits
- Outstanding impact and sound deadening
- Resistance to moisture absorption & rot
- Suitable for underfloor heating
- Environment friendly
- Assists in at reducing reverberated sound in the room
- Will last the life of any floors

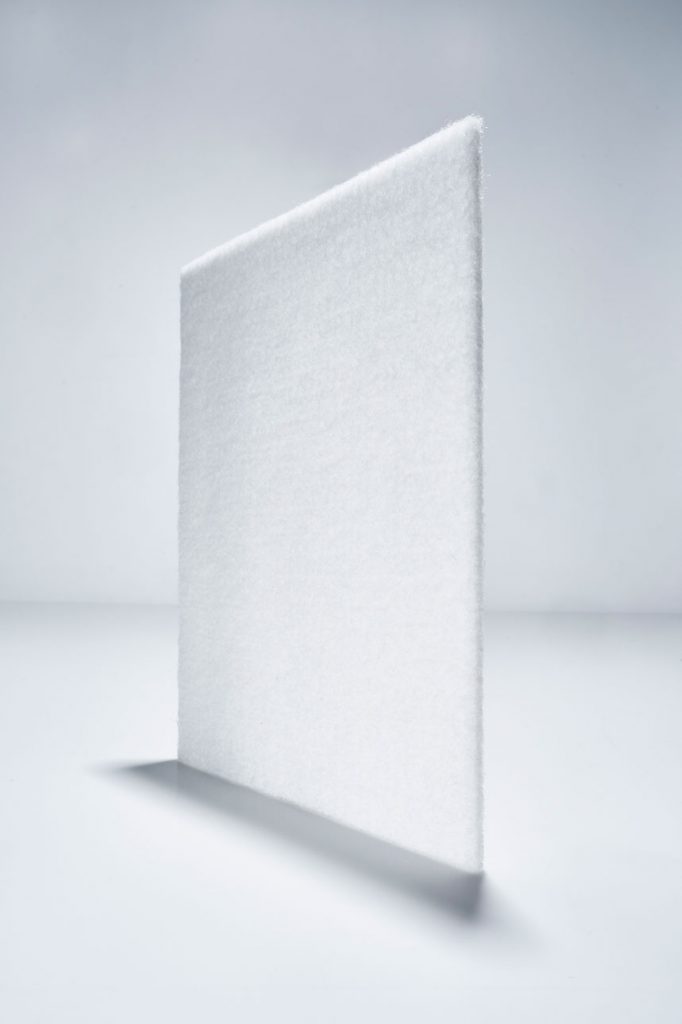

AngelStep® 630
AngelStep® 630 greatly reduces airborne sound waves noise above or below the floor - and complies with the Building Code of Australia in respect to separating floors between adjoining dwellings. When AngelStep® 630 is installed, it delivers optimum performance and comfort for both resident and neighbours alike.
The unrivalled performance of AngelStep® 630 was designed for use in apartments and townhouses, upmarket housing and professional office and consulting suites where discerning buyers expect performance beyond that mandated by the minimum requirements of the BCA.
Application
Residential apartments
Unit blocks
Commercial offices
Schools
Shopping malls
Technical data
- Standard sheet size 1200 x 1200 x 4mm
- Capable of achieving the highest 6-star rating dependent on installation
- Zero VOC’s, zero emissions and non-toxic
- 10 year warranty (subject to correct installation and use)
- BCA compliant (separating floors between adjoining dwellings)
- Water and chemical resistant
- Australian designed and manufactured
- Compressive strength at 10% deformation (EN 826) = 1.68 kPa
- Dynamic stiffness (ISO 9052-1) = 52.94 MN/m³
- Compressibility (EN 12431) = 0.1mm @ 50 kPa

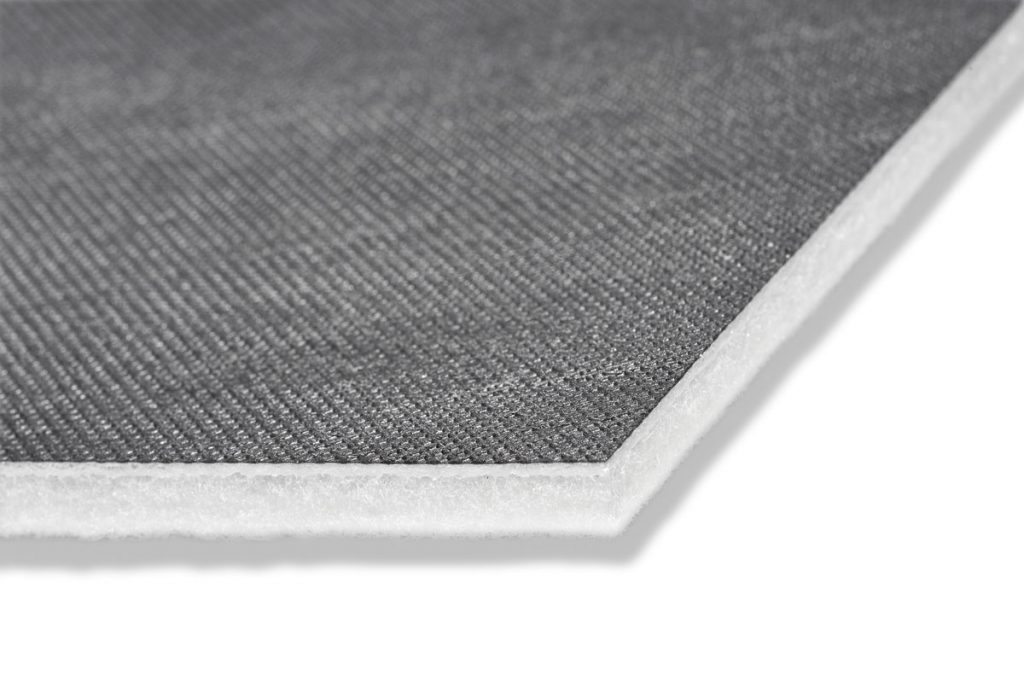

AngelStep® 48P
AngelStep 48P acoustic underlay is designed for installation over concrete slab or light timber joists.
Suitable for carpet tiles, solid and engineered timber floors and timber laminates, AngelStep® 48P is 8mm thick and features a highly-effective ‘floating’ sound barrier above a noise absorbing core.
Durable and long-lasting, AngelStep® 48P won’t degrade under heavy weight and is also water and chemical resistant.
Application
Residential apartments
Unit blocks
Commercial offices
Schools
Shopping malls
Technical data
- Standard sheet size 1150 x 1150 x 8mm
- Capable of achieving the highest 6-star rating dependent on installation
- Designed for a maximum traffic load of 65KN/m2 (approx. 6,500kg/m2).
- Zero VOC’s, zero emissions and non-toxic
- 10 year warranty (subject to correct installation and use)
- BCA compliant (separating floors between adjoining dwellings)
- Water and chemical resistant
- Australian designed and manufactured
- Compressive strength at 10% deformation (EN 826) = 30.5 kPa
- Dynamic stiffness (ISO 9052-1) = 95.59 MN/m³
- Compressibility (EN 12431) = 0.1mm @ 50 kPa
